How modern all-wheel-drive works

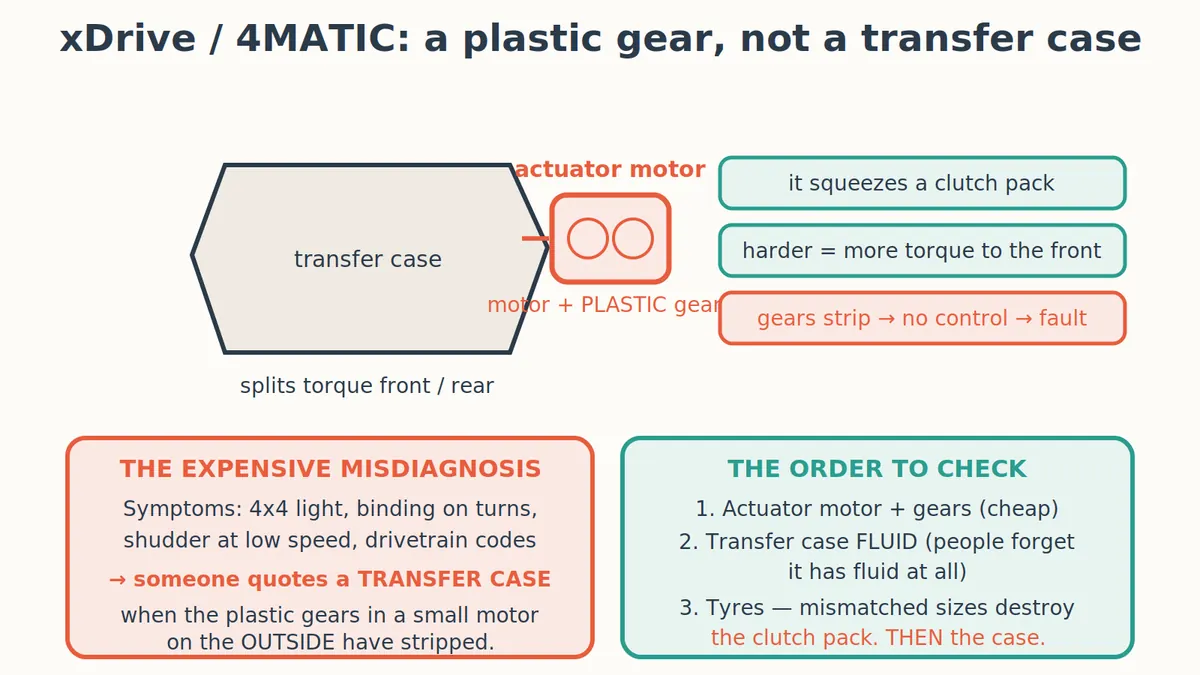

On BMW xDrive and Mercedes 4MATIC the torque split isn't fixed. The computer decides, moment to moment, how much drive goes to the front. It does that by squeezing a clutch pack inside the transfer case — squeeze harder, send more torque forward.
And what does the squeezing? A little electric actuator motor bolted on the outside, with a gear train and a position sensor inside it. That motor is the whole control system.
I confirm the VIN, transfer-case code, actuator version, gear-kit availability and calibration requirement. I also ask the workshop to check tyre circumference and service information before a drivetrain part is ordered.
OE / VIN · FITMENT · TEST · WARRANTYThe actuator motor squeezes the clutch pack. Its gears are plastic — and plastic strips.
Why the actuator fails
Because the gears inside it are plastic, and they live on a hot drivetrain part, working non-stop for years. They wear, then they strip. Once they strip, the motor just spins and nothing moves. The computer asks for a torque split, gets no response, throws a fault and often shuts the whole system down.
Now the symptoms look catastrophic — warning lights, binding, shudder — but the transfer case itself might be in perfect health.
The right order to check
One: the actuator motor and its gears. actuator or gear failure, and the common one. Two: the transfer case fluid — and this genuinely surprises people, because a lot of owners don't even know it's got fluid. It's not lifetime, whatever the paperwork hints, and dirty fluid chews up the clutch pack. Three: the tyres.
Why the tyres? Nobody expects this one
Because on an all-wheel-drive car, mismatched rolling circumference can place continuous extra work on the drivetrain. If the fronts are a different size, or more worn, than the rears, the axles turn at slightly different speeds — permanently. And the clutch pack has to absorb that difference every single second the car's moving. It slips, it heats, it wears out.
So a customer who put two new tyres on instead of four, or ran different brands front and rear, is slowly destroying a very expensive part without knowing it. Tell him. It's free advice that saves him thousands — and it's exactly the sort of thing that makes a workshop decide you actually know this stuff.
What to order
The actuator is car-specific and usually needs calibrating after fitting — the computer has to learn the new unit's zero point. Send the VIN. And check whether there's a repair kit with just the gears for that car, because on some there is, and it can turn a complete-unit replacement into a smaller repair.
What I check before shipment
I confirm the VIN, transfer-case code, actuator version, gear-kit availability and calibration requirement. I also ask the workshop to check tyre circumference and service information before a drivetrain part is ordered.
Diagnosis and safety note
This guide describes common failure patterns, not a final diagnosis. Confirm fault codes, live data, wiring, fitment and the vehicle-specific service information before ordering or fitting a part. Safety-critical, refrigerant, high-pressure and drivetrain work should be handled by a qualified technician using the correct procedures.
Frequently asked questions
Can you just replace the plastic gears? On some cars yes, and it's a real saving. Confirm by VIN before you promise it.
It binds only on full lock at low speed — actuator? Could be, but check the tyres and fluid first. Binding on tight turns is the classic sign of an all-wheel-drive system fighting itself, and mismatched tyres cause exactly that.
Is the transfer case fluid really a service item? Yes. Ignore it and you're running a clutch pack in dirty oil. It's one of the simplest preventive jobs on the whole car.
