What is AHC and how does it work?

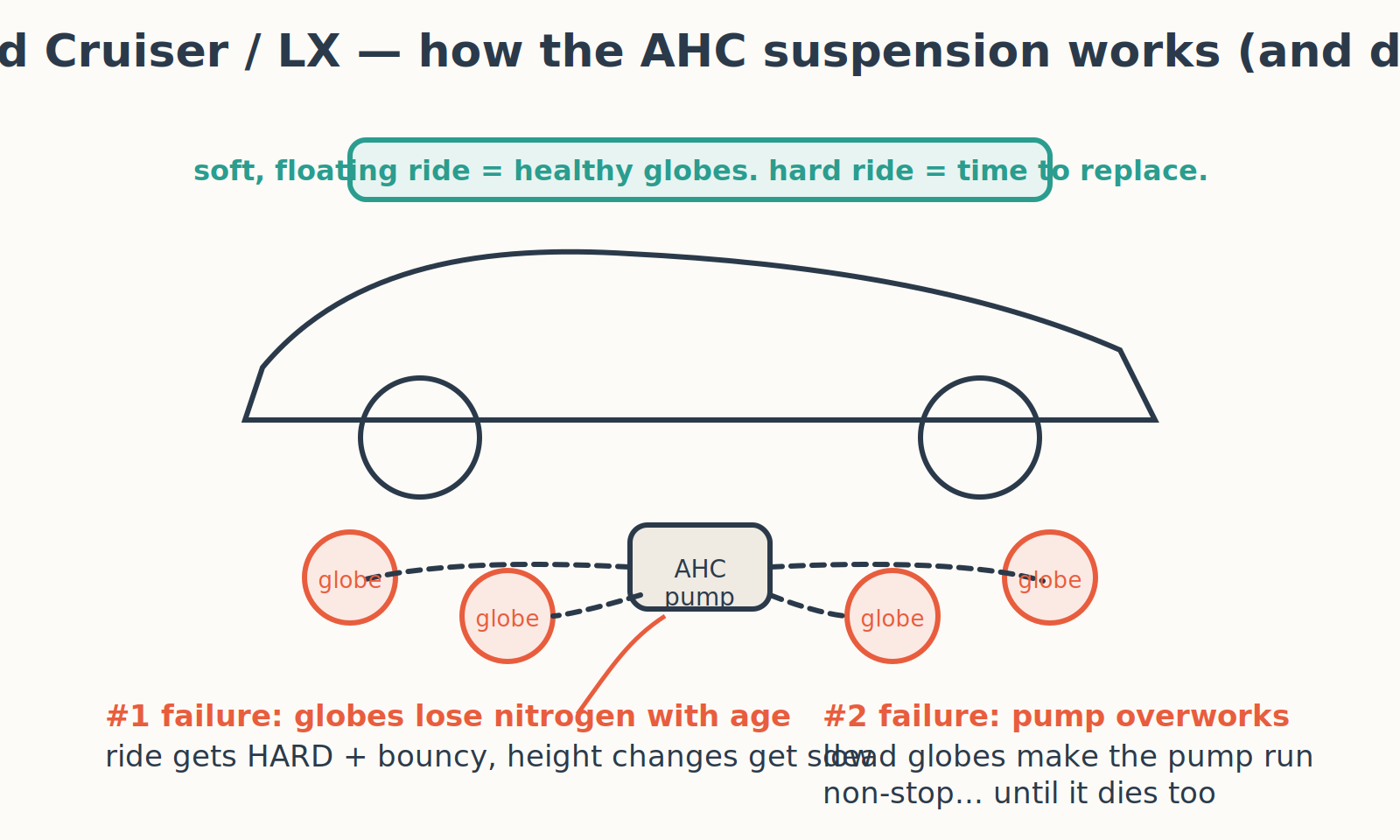

AHC is a hydraulic suspension: a pump pressurises fluid, and four gas-filled spheres — the 'globes' — act as the springs, one near each wheel. Inside each globe, nitrogen gas sits behind a membrane and absorbs the bumps. The system also raises and lowers the vehicle: high for off-road, low for the highway. It is comfortable, clever — and it has one great weakness.
What is the number one AHC failure?
The globes. Over the years, the nitrogen slowly escapes through the membrane. A globe cannot be refilled — once the gas is gone, the spring effect is gone. The failure is gradual, which is why many owners do not notice: the ride gets a little harder every year, until one day the famous Land Cruiser comfort has completely disappeared. As a working rule, globes are due roughly every 60,000 to 100,000 km — sooner on rough roads.
What are the symptoms of dead globes?
A hard, bouncy ride — the classic sign. Height changes that take much longer than before. The AHC pump running far more often, and for longer. And there is a simple field test many technicians use: check how many graduations the AHC fluid level drops between the LO and HI positions. A small drop means the globes have lost their gas. Any Land Cruiser owner complaining that 'it used to ride like a cloud and now it rides like a truck' is describing dead globes.
Why does the pump fail next?
This is the chain reaction every workshop should explain to the customer. Healthy globes store pressure and do most of the work; the pump only tops up. When the globes die, the pump must work constantly to do a job it was never sized for. It overheats, wears, and eventually fails. That is why a vehicle that ran for years on dead globes so often needs a pump as well — and why replacing globes early is what saves the pump. One neglected failure quietly buys the second one.
What should be replaced, and what does quality mean here?
Globes are replaced as a set of four — they share the same age, and mixing one new globe with three dead ones gives an uneven, strange ride. Fresh AHC fluid belongs in the same job. If the pump has been overworked for a long time, its output should be checked before the vehicle goes back to the customer. On quality: a globe is a pressure vessel — the membrane material and the correct nitrogen pre-charge decide whether it lasts eight years or eight months. This is a part where the cheapest option defeats the whole repair. Buy tested globes, with warranty, from a supplier who can tell you the pre-charge pressure — not just the lowest number on a screen.
Frequently asked questions
Q: Can AHC globes be refilled with nitrogen? — No. The gas sits behind a sealed membrane. Once it has escaped, the globe is finished. Replacement is the only fix.
Q: Can you replace only the front globes? — All four is the correct job. They aged together; replacing half gives an unbalanced ride and the old pair will need doing within months anyway.
Q: Is converting to normal suspension better than repairing AHC? — Some owners convert, but they lose the height control and the signature ride. A properly repaired AHC — four fresh globes, clean fluid, healthy pump — rides better than any conversion. For workshops, the honest repair is also the better job.
